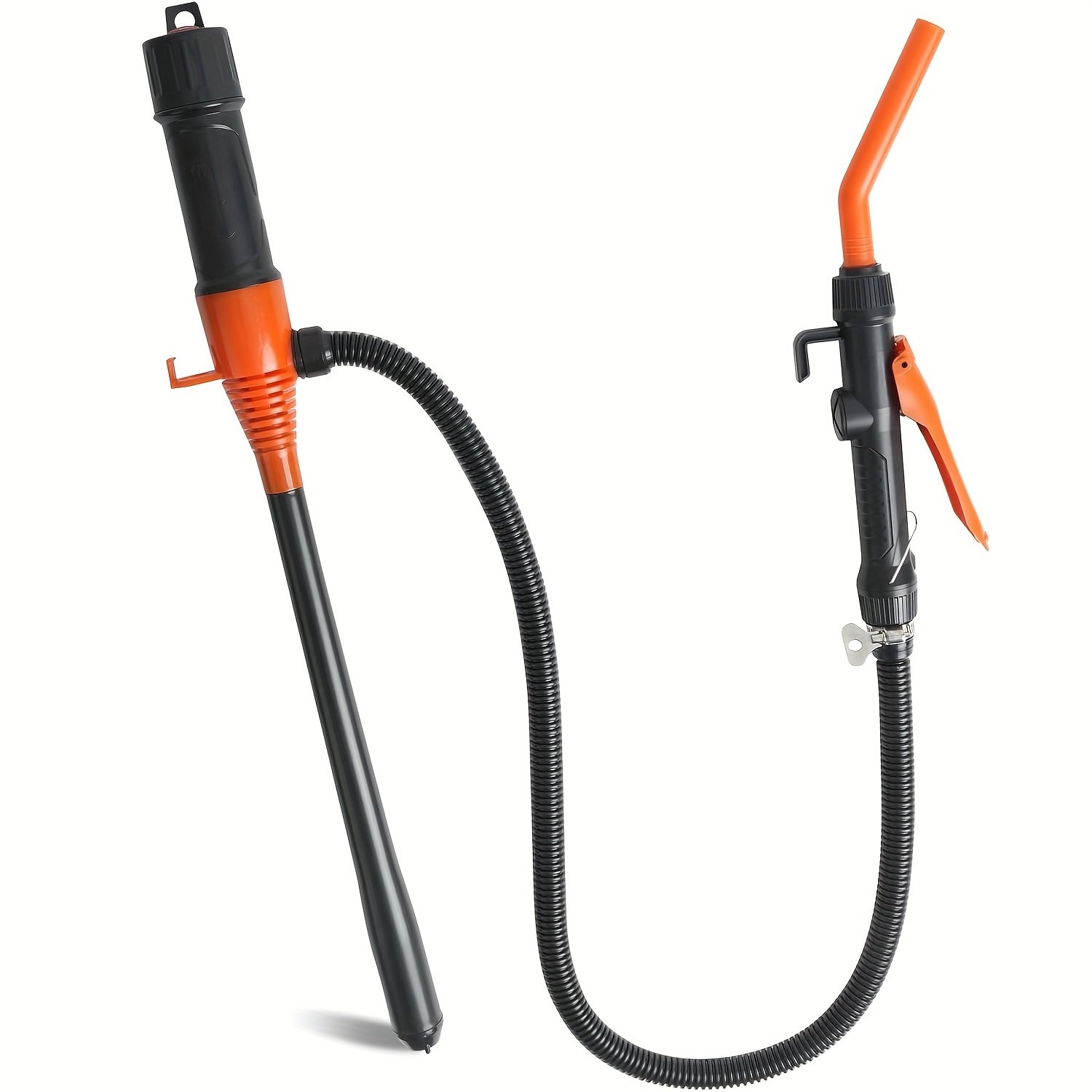

Portable Battery-Powered Fuel Pump With Flow Control

This portable fuel pump is designed for the practical transfer of petrol, diesel, and kerosene between suitable containers, tanks, and machinery. The battery-powered design makes the pump usable in locations where a fixed power connection is not available. A flexible hose and a handheld flow control nozzle allow for the regulation of liquid flow during filling. The pump has a rated capacity of up to 9.08 litres per minute, making it suitable for controlled transfer tasks in garages, workshops, and other relevant work areas.

Key Benefits

• Battery-powered design makes the pump portable and independent of plug sockets.
• Flow control nozzle allows for manual regulation or stopping of the liquid flow.
• Pump capacity of up to 9.08 litres per minute.
• Long suction pipe can be inserted into suitable fuel containers.
• Flexible hose provides freedom of movement between the container and filling point.
• Suitable for transferring petrol, diesel, and kerosene.

Overview

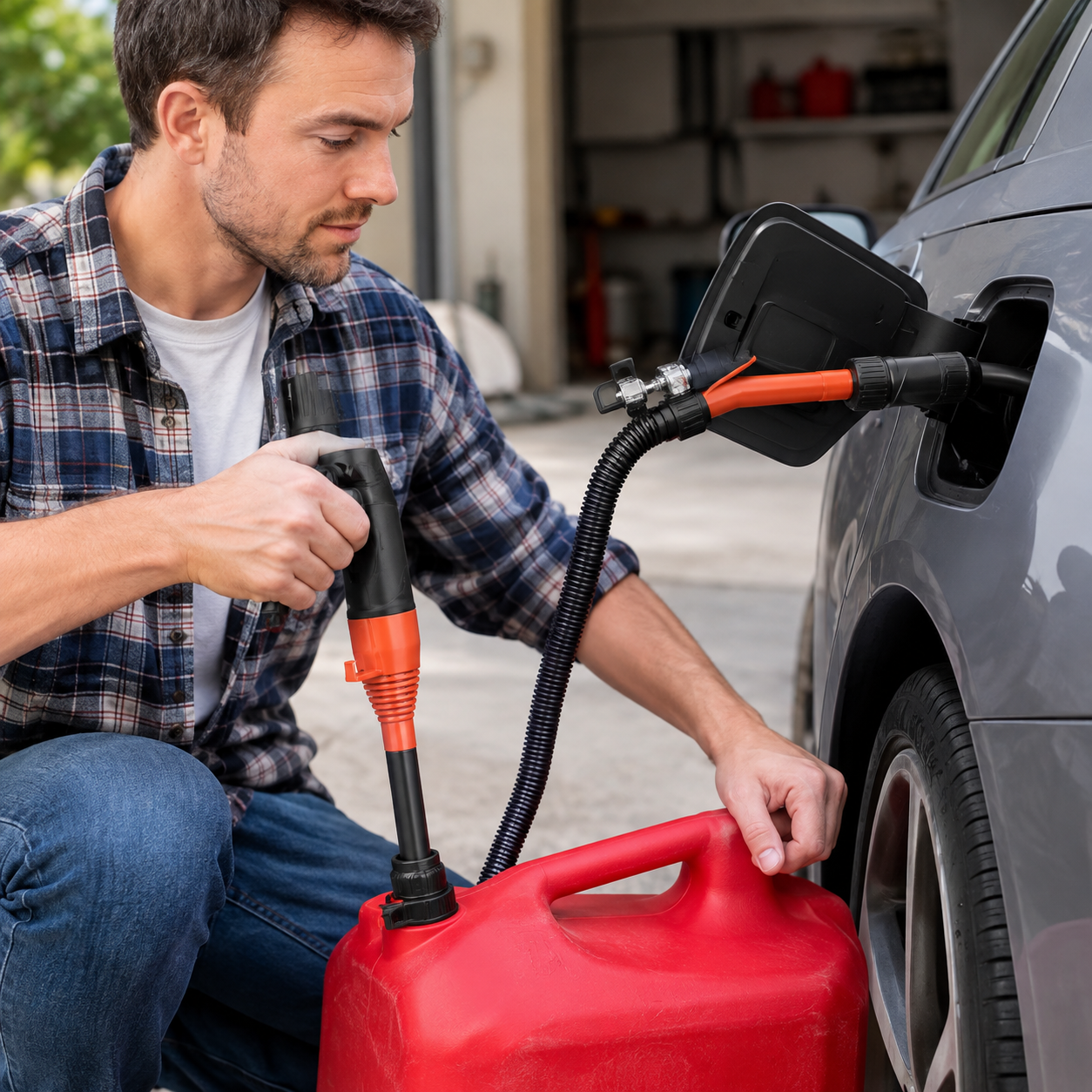

This battery-powered fuel pump is a mobile solution for situations where fuel needs to be moved without manual tilting. The suction pipe is placed in the container from which the liquid is to be pumped, while the hose is directed to the receiving tank or container. The flow control nozzle is operated by hand and provides better control over the filling process, allowing the user to reduce the risk of spillage and overfilling.

The pump can be used as part of vehicles, construction machinery, generators, and other equipment that uses one of the specified fuel types. Its compact design makes it easier to store and transport between work sites. Batteries are not included and must be purchased separately. The required battery type is not specified in the attached product material and should therefore be checked before use.

Specifications

Preparation Before Use

Before using the pump, the chosen container should be placed securely and close to the filling point. Ensure that there is free access to both containers and that the hose can reach without being stretched. Install the necessary batteries with the correct polarity, and check that the operation responds before lowering the suction pipe into the liquid. Plan the transfer in advance so that the pump can be stopped quickly if the container approaches maximum filling.

Controlled Transfer With Flow Nozzle

The handheld nozzle is designed to control the flow at the filling point. This allows for the adjustment of liquid flow while the receiving container is being filled. Keep the nozzle steadily positioned throughout the process, and stop pumping well before the container is full. Always monitor the transfer, and never leave the pump running unattended.

The suction pipe should be securely placed in the original container so that it does not slip out during use. The hose should lie without sharp bends, strain, or contact with hot surfaces. Check the pump, hose, and connections for visible damage, leaks, or loose connections before each use.

Safe Use and Storage

Fuel is flammable and must be handled with great care. Only use the pump outdoors or in an area with effective ventilation. Keep the product away from open flames, sparks, hot surfaces, smoking, and other ignition sources. Turn off vehicles, generators, and machinery before transfer, and always follow applicable regulations for the storage and handling of fuel.

Only use containers that are approved for the current liquid. Avoid skin and eye contact, and use appropriate personal protective equipment. The pump must not be used if there is a leak, abnormal sound, or damage. After use, residues should be wiped off carefully, and the pump should be stored upright in a dry, ventilated place out of reach of children. Remove the batteries during long-term storage, and store fuel separately in approved containers.
